Product Details
Synonyms
IL12, p70, Interleukin-12
Source

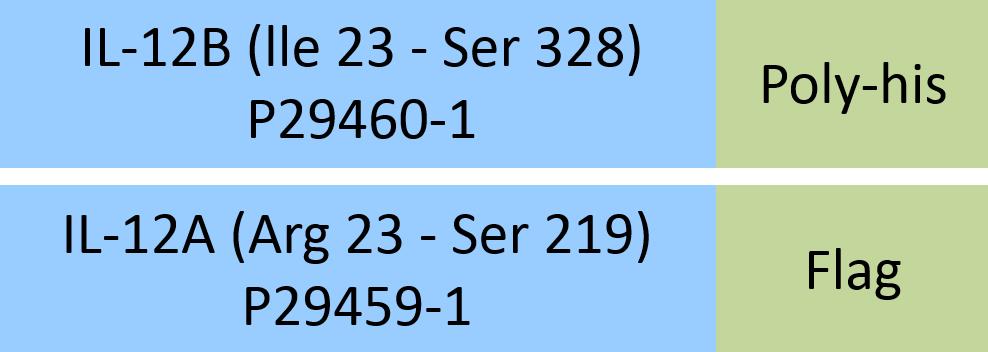

Human IL-12B&IL-12A Heterodimer Protein, His Tag&Flag Tag (IL2-H4210) is expressed from human 293 cells (HEK293). It contains AA Ile 23 - Ser 328 (IL-12B) & Arg 23 - Ser 219 (IL-12A) (Accession # P29460-1 (IL12B) & P29459-1 (IL12A)).
Predicted N-terminus: Ile 23 (IL12B) & Arg 23 (IL12A)
Request for sequenceMolecular Characterization
Other Tags and Version Biotin & Other Labeled Version
Human IL-12B&IL-12A Heterodimer Protein, His Tag&Flag Tag is produced by co-expression of IL-12B and IL-12A, has a calculated MW of 36.6 kDa (IL-12B) and 23.8 kDa (IL-12A). Subunit IL-12B is fused with polyhistidine tag at the C-terminus and subunit IL-12A is fused with flag tag at the C-terminus. The protein migrates as 30-38 kDa (IL12B) and 40-50 kDa (IL12A) when calibrated against Star Ribbon Pre-stained Protein Marker under reducing (R) condition (SDS-PAGE) due to glycosylation.
The protein is designed as a heterodimer.
Endotoxin
Less than 0.01 EU per μg by the LAL method / rFC method.
Purity
>90% as determined by SDS-PAGE.
>95% as determined by SEC-MALS.
Formulation
Lyophilized from 0.22 μm filtered solution in PBS, pH7.4 with trehalose as protectant.
Contact us for customized product form or formulation.
Reconstitution
Please see Certificate of Analysis for specific instructions.
For best performance, we strongly recommend you to follow the reconstitution protocol provided in the CoA.
Shipping and Storage
This product is shipped at ambient temperature.
For long term storage, the product should be stored at lyophilized state at -20°C or lower.
Please avoid repeated freeze-thaw cycles.
This product is stable after storage at:
- -20°C to -70°C for 12 months in lyophilized state;
- -70°C for 3 months under sterile conditions after reconstitution.
ACRO Quality Management System
Customers Also Viewed
Performance Data
SDS-PAGE
Human IL-12B&IL-12A Heterodimer Protein, His Tag&Flag Tag on SDS-PAGE under reducing (R) condition. The gel was stained with Coomassie Blue. The purity of the protein is greater than 90% (With Star Ribbon Pre-stained Protein Marker).
SEC-MALS

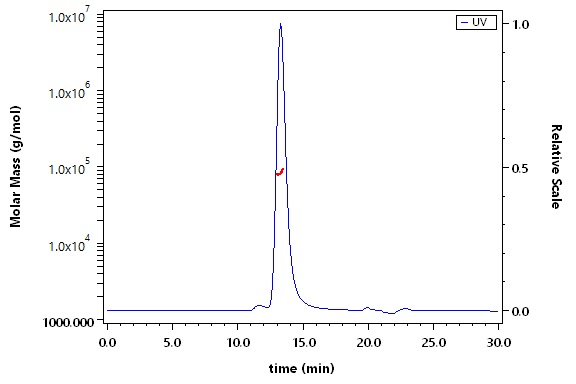

The purity of Human IL-12B&IL-12A Heterodimer Protein, His Tag&Flag Tag (Cat. No. IL2-H4210) is more than 95% and the molecular weight of this protein is around 65-95 kDa verified by SEC-MALS.
Report
Bioactivity-ELISA
Immobilized Human IL-12B&IL-12A Heterodimer Protein, His Tag&Flag Tag (Cat. No. IL2-H4210) at 0.5 μg/mL (100 μL/well) can bind Monoclonal Anti-Human IL23A&IL12B P40 domain Antibody, Human IgG1 with a linear range of 0.05-2 ng/mL (QC tested).
Protocol
Immobilized Biotinylated Human IL-12 R beta 1, Fc,Avitag (Cat. No. ILB-H82F7) at 1 μg/mL (100 μL/well) on Streptavidin (Cat. No. STN-N5116) precoated (0.5 μg/well) plate, can bind Human IL-12B&IL-12A Heterodimer Protein, His Tag&Flag Tag (Cat. No. IL2-H4210) with a linear range of 0.039-0.625 μg/mL (Routinely tested).
Protocol
Bioactivity-SPR
Human IL-12 R beta 1, Fc Tag (Cat. No. ILB-H5255) captured on CM5 chip via Anti-human IgG Fc antibodies surface can bind Human IL-12B&IL-12A Heterodimer Protein, His Tag&Flag Tag (Cat. No. IL2-H4210) with an affinity constant of 2.06 nM as determined in a SPR assay (Biacore T200) (Routinely tested).
Protocol
Bioactivity-BLI

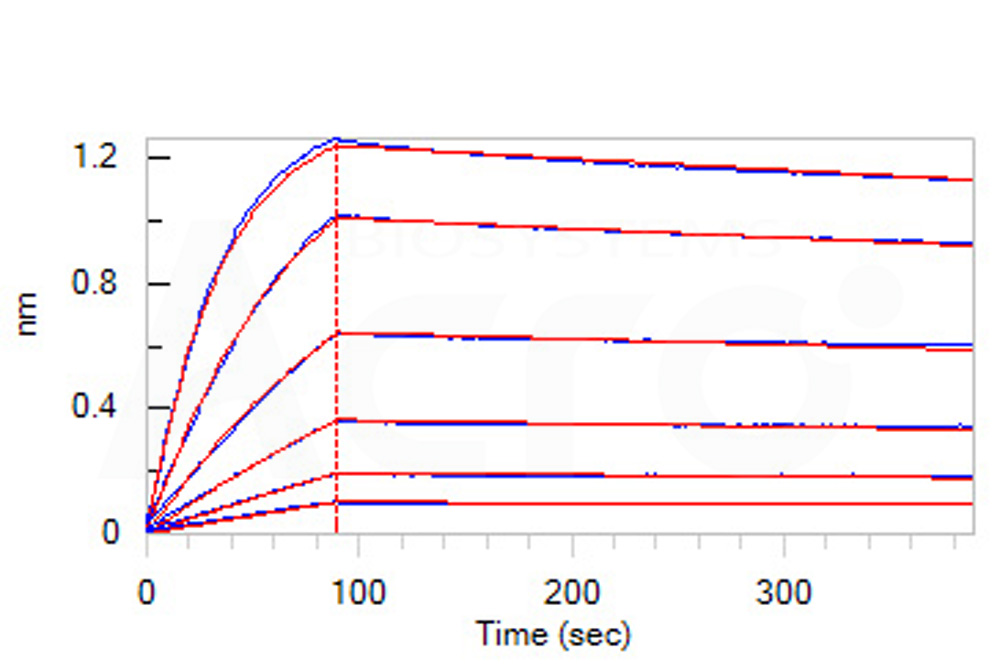

Loaded Anti-IL23A & IL12B MAb (P40 domain) on Protein A Biosensor, can bind Human IL-12B&IL-12A Heterodimer Protein, His Tag&Flag Tag (Cat. No. IL2-H4210) with an affinity constant of 1.07 nM as determined in BLI assay (ForteBio Octet Red96e) (Routinely tested).
Protocol

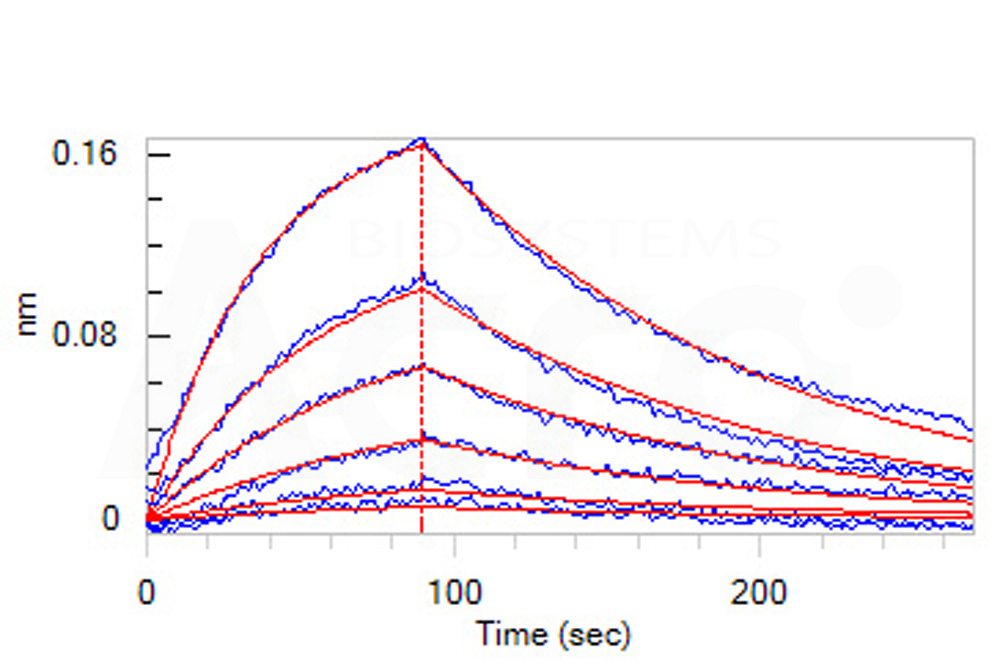

Loaded Human IL-12B&IL-12A Heterodimer Protein, His Tag&Flag Tag (Cat. No. IL2-H4210) on HIS1K Biosensor, can bind Human IL-12 R beta 1, Fc Tag (Cat. No. ILB-H5255) with an affinity constant of 92.2 nM as determined in BLI assay (ForteBio Octet Red96e) (Routinely tested).
Protocol
Bioactivity-CELL BASE

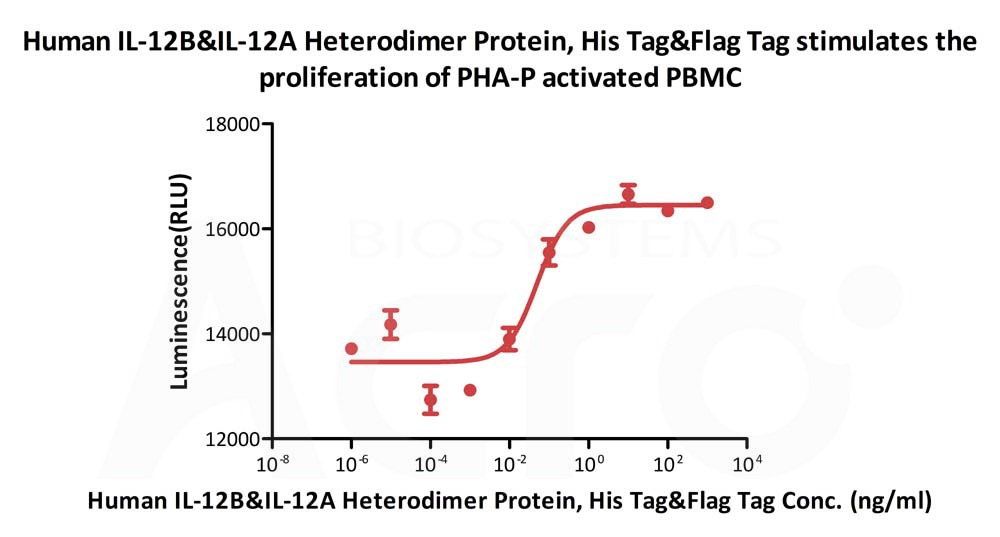

Human IL-12B&IL-12A Heterodimer Protein, His Tag&Flag Tag (Cat. No. IL2-H4210) stimulates the proliferation of PHA-P activated PBMC. The ED50 for this effect is 0.05 ng/mL (Routinely tested).
Protocol
